CDN

Contentrain Studio includes a built-in Content Delivery Network for serving your published content through a fast, public API. The CDN builds optimized content from your Git repository and serves it through edge infrastructure.

Managed service / Enterprise Edition

The CDN is an Enterprise Edition feature, gated by the cdn.delivery plan feature and backed by Cloudflare R2 storage. It is available on Contentrain's managed service (Starter plans and above) and on self-hosted Enterprise Edition deployments. It is not available in the self-hosted Community Edition, which has no CDN storage backend.

How the CDN Works

Git Repository → Build Pipeline → CDN Storage → Public API

1. Content is committed to your repository through Studio
2. A build is triggered (manually with Rebuild now, or automatically when a push to the project's CDN branch changes content)
3. The build pipeline reads content, keeps only published entries that are inside their schedule window, and serializes to optimized JSON
4. Content is uploaded to CDN storage
5. Consumers fetch content through the public delivery endpoint

Enabling CDN

CDN is available on Starter plans and above. To enable it for a project:

1. Open the project sidebar

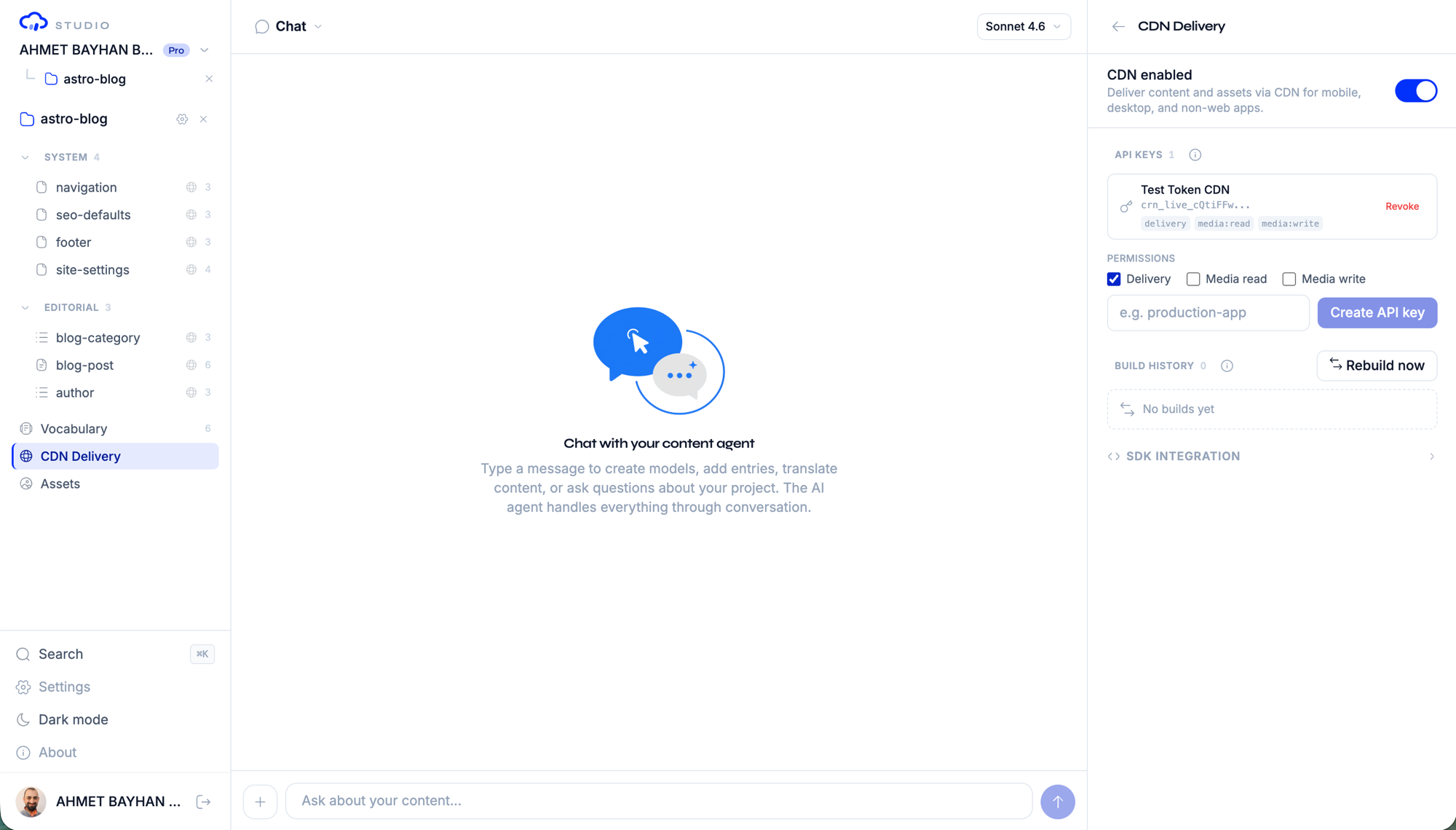

2. Click CDN to open the CDN panel
3. Toggle Enable CDN in the settings
4. Create an API key for authentication

API Key Management

CDN access requires an API key. Keys are used in the Authorization header of requests to the delivery endpoint.

Creating a Key

1. In the CDN panel, go to the API Keys section
2. Enter a descriptive name for the key and choose its Permissions
3. Click Create API key
4. The key is generated and shown once — copy it immediately

Permission	Allows
Delivery	Reading content JSON, manifests, and media binaries from the delivery endpoint
Media read	Reading media binaries from the delivery endpoint and using the media API for reads
Media write	Uploading through the media API

A key with only the media permissions cannot read content JSON (it receives 403). A key created without choosing permissions gets Delivery.

WARNING

API keys are shown only once at creation time. Studio stores only the SHA-256 hash of the key. If you lose the key, you must create a new one.

Key Format

CDN API keys follow the format:

crn_live_{random-base62-string}

Example: crn_live_7K2mX9pQ4rT6vW3nY8sB1hJ5

Revoking a Key

To revoke access, click Revoke next to the key in the CDN panel. This takes effect immediately — any requests using the revoked key will receive a 401 Unauthorized response.

Public Delivery Endpoint

Content is served through a REST-style endpoint:

GET /api/cdn/v1/{projectId}/{path}
Authorization: Bearer crn_live_...

Path Structure

Objects are keyed by model ID (the domain is not part of the CDN path — it is written flat by the build pipeline):

Path	Returns
content/{modelId}/{locale}.json	Published entries for an i18n collection/singleton/dictionary, by locale
content/{modelId}/data.json	Published entries for a non-i18n model
meta/{modelId}/{locale}.json	Per-entry metadata for an i18n model, by locale (data.json for non-i18n)
documents/{modelId}/{slug}/{locale}.json	A single document entry ({ frontmatter, body, html })
documents/{modelId}/_index/{locale}.json	Frontmatter index for a document model, by locale
models/{modelId}.json	A model definition
models/_index.json	Summary index of all models
_manifest.json	Build manifest (commit SHA, locales, domains, model list)
_media_manifest.json	Media manifest — asset metadata (dimensions, blurhash, alt text)
_bundle/{locale}.json	Per-locale bundle — all JSON content for one locale in a single fetch (see Locale bundles)
media/{...}	Media binaries (images, files) — served keyless when public media is enabled

A request for the uploaded original of an image (the private source file) returns 404 on the delivery endpoint; only the optimized media is delivered.

For example, the English entries of a blog-post collection are served at content/blog-post/en.json.

Response Format

The endpoint returns the raw published-content JSON file straight from CDN storage, with Content-Type: application/json and an ETag header (conditional If-None-Match requests return 304). Collection and singleton files are an object map keyed by entry ID, containing only entries with published status that are inside their schedule window (see Scheduled publishing):

{
  "a1b2c3d4e5f6": {
    "title": "Hello World",
    "slug": "hello-world",
    "body": "..."
  },
  "g7h8i9j0k1l2": {
    "title": "Second Post",
    "slug": "second-post",
    "body": "..."
  }
}

Delivery Model

The delivery endpoint is built for the hot path. Key, project, and plan lookups are served from in-process TTL caches, so a warm request spends its round-trips only on the rate-limit check and the storage read. Storage reads are conditional: the endpoint forwards your If-None-Match to R2, so an unchanged object returns 304 with no body transfer.

Cache-Control is split by auth mode:

• Keyed content (JSON, manifests) is returned as private, max-age=60 — a shared or edge cache must never replay keyed content to a keyless client.
• Keyless public media is returned as public, max-age=60, s-maxage=3600, stale-while-revalidate=86400, so shared caches and CDNs can serve it.

Locale bundles

Every build also emits one bundle artifact per locale at _bundle/{locale}.json. A bundle packs all of a locale's JSON content into a single object so a client can prime its per-path cache with one conditional fetch instead of one request per model (plus one per include() relation). Content only changes on a build, so shipping the bodies together turns a 5–10+ round-trip page render into a single request.

{
  "version": "1",
  "commitSha": "abc123...",
  "builtAt": "2026-07-10T12:00:00.000Z",
  "locale": "en",
  "paths": {
    "content/authors/en.json": { "a1b2c3d4e5f6": { "name": "Jane" } },
    "content/site-settings/data.json": { "title": "My Site" },
    "documents/articles/_index/en.json": []
  }
}

• paths is keyed by the exact delivery paths the SDK already fetches, and each body is identical to the standalone artifact — one primed fetch serves every listed path from cache.
• All JSON-kind models ship their full body (collections published-filtered, singletons, dictionaries). Non-i18n models appear under their real content/{modelId}/data.json path in every locale bundle.
• Document models contribute only their _index; per-slug document bodies and meta/... are not bundled and fall through to normal per-path fetches.
• The bundle is emitted on every build so it always mirrors the standalone artifacts. Consumers must ignore a bundle whose version is not "1" (or whose paths is missing) and fall back to per-path fetches. Like every delivery object, it is ETag'd and keyed-only (never publicly served).

Authentication

Content JSON and manifests always require a valid API key in the Authorization header:

curl -H "Authorization: Bearer crn_live_..." \
  https://your-studio.com/api/cdn/v1/{projectId}/content/blog-post/en.json

Media binaries (paths starting with media/) are the one exception: when a project has public media enabled (the default), they are served keyless (rate-limited per project + client IP) so a browser <img src> can load them — an API key can't live in an <img> tag. A project that has turned public media off requires a key for media too. Media responses carry a restrictive Content-Security-Policy and nosniff.

Build Pipeline

Triggering a Build

Builds can be triggered in two ways:

1. Manual trigger — Click Rebuild now in the CDN panel (the button reads Building... while it runs). A manual rebuild is a full rebuild, and it is refused with 409 while another build is running
2. Automatic — When a push lands on the project's CDN branch and changes content, the GitHub push webhook starts a build. No configuration is needed. The CDN branch defaults to the repository's default branch, so a Studio merge reaches the CDN once content is on that branch (see Branches and Review)

Builds read the CDN branch, not the contentrain branch.

Build Process

Each build:

1. Reads the latest content from your Git repository
2. Loads all model definitions
3. Filters content entries to include only published status inside their publish_at (inclusive) and expire_at (exclusive) window
4. Serializes Markdown content to HTML (for document models)
5. Uploads optimized JSON to CDN storage
6. Cleans up stale files from previous builds

Build Results

After a build completes, you can see:

Field	Description
buildId	Unique build identifier
commitSha	The Git commit the build was created from
filesUploaded	Number of content files processed
filesDeleted	Number of stale files removed
totalSizeBytes	Total size of the uploaded content
changedModels	Which models had content changes
durationMs	Build duration in milliseconds

Build History

The CDN panel shows a history of recent builds with their status, timing, and output details.

TIP

If content looks stale on the CDN, click Rebuild now to ensure the latest published content is served.

CDN Security

• API key authentication — Content JSON and manifests require a valid key on every request. Media binaries are the only content that can be served keyless, and only when public media is enabled for the project.
• Rate limiting — Keyed requests are rate-limited per key; keyless public-media requests are rate-limited per project + client IP
• Published only — The CDN only serves entries with published status inside their schedule window; draft and archived content is never exposed

Plan Limits

Feature	Free	Starter	Pro	Enterprise
CDN delivery	No	Yes	Yes	Yes
API keys	0	3	25	Unlimited
Bandwidth	0	3 GB/mo	60 GB/mo	Unlimited
Preview branches (roadmap)	No	No	Yes	Yes
Custom domain (roadmap)	No	No	No	Yes

Bandwidth counts transfer from Studio's origin only; cache hits and 304 responses are free. Past the allowance, delivery continues to 120% and then pauses until the month resets, unless overage is on ($0.15/GB, up to 10× the plan) — see Billing & Plans.

Next Steps

• Content Editing — Publish content for CDN delivery
• Webhooks — Get notified when CDN builds complete
• Billing & Plans — Upgrade for more CDN capacity
